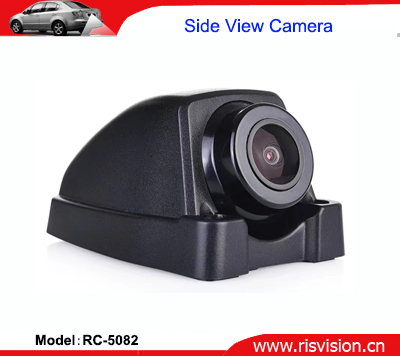

Model No.: RC-5082 (Side View Camera)

Item                                                                             Value

◆ Type                                                                     High resolution side view camera

◆ Image Sensor                                                      SHARP CCD (SONY CCD &CMOS Chip Optional)

◆ TV System                                                           NTSC/PAL Optional

◆ Effective Pixels                                                    N: 510×492 pixels P: 500×582 pixels

◆ Horizontal Resolution                                          420 TV Line

◆ Lens Angle                                                         120°

◆ Minimum Illumination                                          0Lux (LED ON)

◆ Night Vision distance                                         45ft

◆ Operating Temperature                                      -20℃~+70℃ RH95% Max

◆ Lens                                                                    f=2.8mm

◆ Power Supply                                                    DC12V

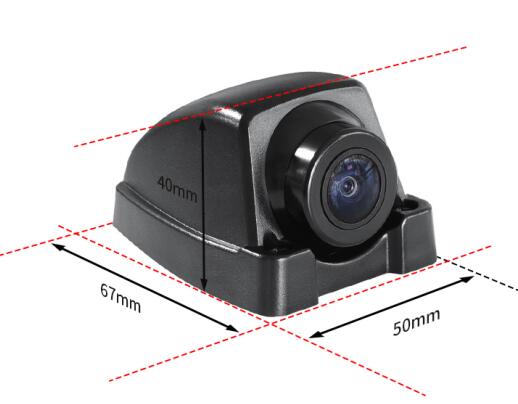

 Size ：
