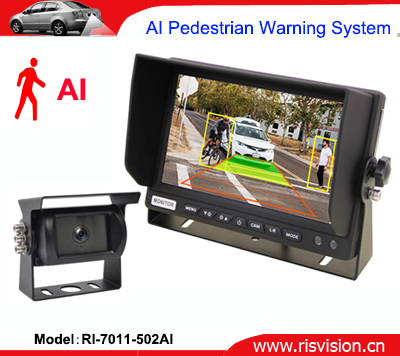

Model

RC-502AI

SENSOR

1/2.8 CMOS camera

system

NTSC/PAL

Frame rate

30/25

pixel size

2.8 μm x 2.8 μm

Effective Pixels

1920 (H)  x 1080 (V)

definition

720P （1080P Optional）

minimum illumination

0.1 Lux (day), 0 Lux (with IR)

scanning system

Interlaced scanning

Interlaced scanning

automatic

Signal to Noise Ratio

Better than 48dB

Alarm Type

Bibi Sound

Electronic shutter

AUTO

Backlight Compensation

AUTO

focal length

2.8mm

camera angle

D:135°   H:105°   V:55°

supply voltage

DC12V

Ambient Temperature

 -20 ℃~70 ℃, maximum humidity of 95%

Storage temperature

 -30 ℃~80 ℃, maximum humidity of 95%

Application

Pedestrian & Vehicle & Obstacles Detection

◆  7 inch AHD vehicle mounted display (with shade)

◆  Back Light Luminance：LED,500cd/㎡

◆  Aspect ratio:16:9image

◆  AV Resolution:  1024*R.G.B*600

◆  2 channel HD video input, single image display,
◆  Support 720P@25/30, 720P@50/60, 1080P@25/30
◆  2 way audio input (Optional)

◆  2 way audio input (Optional)

◆  Automatically switch to V2 when reversing

◆  Power supply: Power supply: DC 9V-36V input，12V output

◆  OSD menu,remote control

◆  System:PAL&NTSC auto-switching

◆  OSD control Brightness, Contrast, Saturation, Volume, Language

◆  View angle:L/R: 70°,UP:50°,down: 70° degree

◆  Optional functions4 PIN connector or RCA connector

◆  With stand bracket or U shape bracket (Optional)
