Model No.:

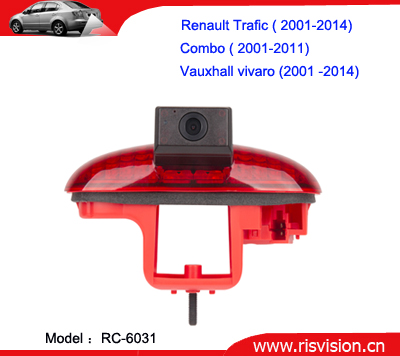

Renault Trafic(2001-2014),Combo(2001-2011),Vauxhall Vivaro(2001-2014) |
|
| Detailed Product Description: |
 Specification :
| B1.Product Features |
| 1.Use 1/3CMOS sensor,support analog hd video 700TVL |
| 2.Waterproof grade IP69K |
| 3.Support mirror switching and ruler control functions |
| 4.With night vision function, infrared distance 6m |
| B2.Specifications |
| |
Image Sensor |
1/3 CMOS PC1058K |
|
|
|
|
| |
TV System |
NTSC/PAL |
|
|
|
|
| |
Effective Pixels |
976(H)*592(V) |
|
|
|
|
| |
Sensing Area |
4.880mm*3.670mm |
|
|
|
|
| |
Sync. System |
Internal |
|
|
|
|
| |
Resolution |
700 TVL |
|
|
|
|
| |
Minimum Illumination |
0.1 Lux (day), 0 Lux (with IR) |
|
|
|
|
| |
Microphone |
Optional |
|
|
|
|
| |
IR LED Qty |
2 PCS |
|
|
|
|
| |
Video Output |
1.0 Vp-p/75 Ohm |
|
|
|
|
| |
Scanning System |
interlace |
|
|
|
|
| |
AGC |
AUTO |
|
|
|
|
| |
Signal to noise ratio |
Better than 48dB |
|
|
|
|
| |
White balance |
AUTO |
|
|
|
|
| |
Gamma Consumption |
0.45 |
|
|
|
|
| |
Electronic Shutter |
AUTO |
|
|
|
|
| |
Backlight Compensation |
AUTO |
|
|
|
|
| |
Power Supply |
DC12V |
|
|
|
|
| |
Lens |
1.7mm |
|
|
|
|
| |
Lens Angle |
145° |
|
|
|
|
| |
Current Drain |
Daytime current 50mA ± 5, night vision current 210mA ± 5 |
|
|
|
|
| |
Operating Temperature |
-20℃-70℃,RH 95% MAX |
|
|
|
|
| |
Storage Temperature |
-30℃-80℃,RH 95% MAX |
|
|
|
|
| C1.Accessories |
1.Extension cable 2.JenaLabs 3.Power cord 4.RCA adapter 5.Manual |
|
|
 |
|
|
