Model No.:
Backup CCD Camera
+86-13580347156

Detailed Product Description:
 Material Object:

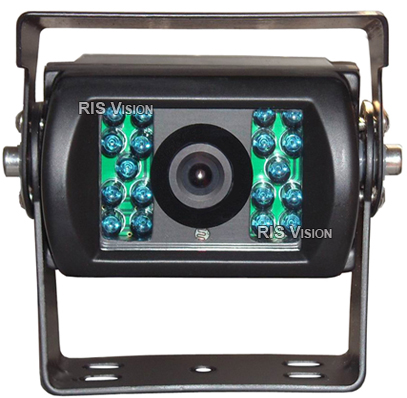

Blue IR LED Rear View CCD Camera







 Feature:



Super Wide Angle

      Waterproof resistance : IP 69 ,Waterproof and weather resistant housing for outdoor use
      Infrared LED light: 18 pcs blue IR
      ◆Excellent night vision
      ◆IR distance: approx. 15m
      ◆Mirror/normal image according to your requirement

  Specification:

Image Pick-up Device :  Sharp CCD  ( Sony Optional )

Number of Pixels : NTSC : 510(H) x492(V); PAL : 500(H)x582(V)

    ◆ Horizontal Resolution: 420 TV Lines

IR LEDS : 18 blue LED

Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

Waterproof Resistance : IP 69

IR project distance : 15 meters

Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

Sync System: Internal Synchronization

Lens :2.8mm standard , 2.1mm~3.6mm (optional)
    ◆ Angle : 120 degree

Video Output :1.0 Vp-p 75 ohm

Gain Control (AGC): Auto

Operation Temperature : -20℃ +60℃ RH95% Max

Storage Temperature: -30℃+70℃ RH95% Max

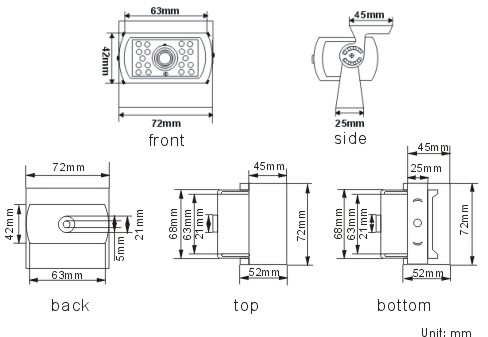

 Dimension:
