Specifications

Effective  Pixel

NTSC/PAL 1280(H)*960(V) 130W

Illuminance

0.1Lux，Infrared night vision

CDS night version change

Change to black and white image automatically in the night

Horizontal Resolution

1.3Megapixel / 960P


Mirror ( Non-mirror optional )

Electronic Shutter

Auto 1/25(30)-1/50,000

Exposure

Auto*2-*512

System

PAL/NTSC optional

Video Output

CVBS 1.0 vp-p/75 ohms

Waterproof Level

IP68

Shockproof Level

4G

Power Requirements

DC 12V  ( 24V optional)

Power Consumption

＜3W

Maximum current

＜250mA

Connector

4PIN ( RCA optional )

Working Temperature

-10℃ to 60℃

Storage Temperature

-20℃ to 70℃

Appearance and Application

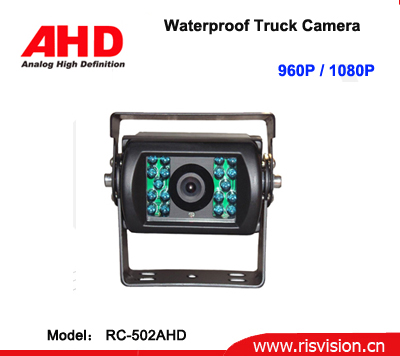

Aluminum alloy material shell, outside hanging design; Suitable for bus, trucks and special vehicles
