◆ Image Pick-up Device :  Sharp CCD ( Sony Optional )

       ◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

       ◆ Horizontal Resolution: 420 TV Lines

       ◆ IR LEDS : 18 blue IR LED

       ◆ Usable Illumination : 1 Lux (F:1.2), 0 Lux with IR LED

       ◆Waterproof Resistance : IP 69

       ◆ IR project distance : 15 meters

       ◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

       ◆ Sync System: Internal Synchronization

       ◆ Lens :2.8mm , 120 degree
          ◆ Video Output :1.0 Vp-p 75 ohm

       ◆ Gain Control (AGC): Auto

       ◆ Operation Temperature : -20℃ ～ +60℃ RH95% Max

       ◆ Storage Temperature: -30℃～+70℃ RH95% Max

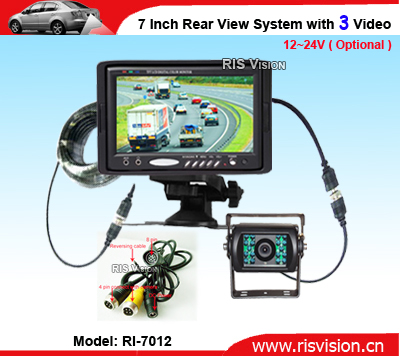

                7" TFT-LCD Color Monitor with three Video Input

           ◆Eight Languages OSD Menu : Chinese,English,Japanese,French,Spanish, Russian,German and Arabic

◆ With audio function,earphone output jack

◆ Picture image may be adjusted for horizontal ,vertical

◆ Mirror Function : mirror/normal (optional)

◆ Used for DVD/VCD/GPS

◆ Wide range of power supply : 12-32 V (Optional)

◆ Full function remote control

◆ Display Pixel : 1440(H) × 234(V)

◆ Color System : RGB Delta

◆ TV System : PAL/NTSC

◆ Video Input : 1Vp-p three Way

◆ Aspect Ratio : 16:09

◆ Power Supply ; DC12V+10%,250mA

◆ Contrast : 300 : 1

◆ Brightness : 300cd/m²

◆ Visible Angle : U: 40/D:60 L/R: 60Autio Output: 0.3W (MAX)

◆ Loudspeaker : one 4.5cm round loudspeaker

◆ Outer Dimension : W 200mm x H 133mm x T 38mm (incl.frame)

◆ Weight : 540g  （without including the package box weight）
          ◆ Housing Colors : Black, silver (Optional)
